Govee H6022 BLE Dashboard

A web-based Bluetooth app for controlling the Govee Smart Table Lamp 2 (H6022), built with Web Bluetooth. Started as a basic lamp control experiment and grew into a feature-rich dashboard.

GitHub · Open app

Features

Direct browser-based connectivity to nearby H6022 lamps over BLE
Power, brightness, colour temperature, and colour control
Scene browsing and customisation with palette editor
Multi-layer animated matrix scene editing
Music effects using device or browser microphone input
Scene and colour preset management with on-device button assignment
Wi-Fi and bedtime switch configuration
Mobile-responsive interface

Screenshots

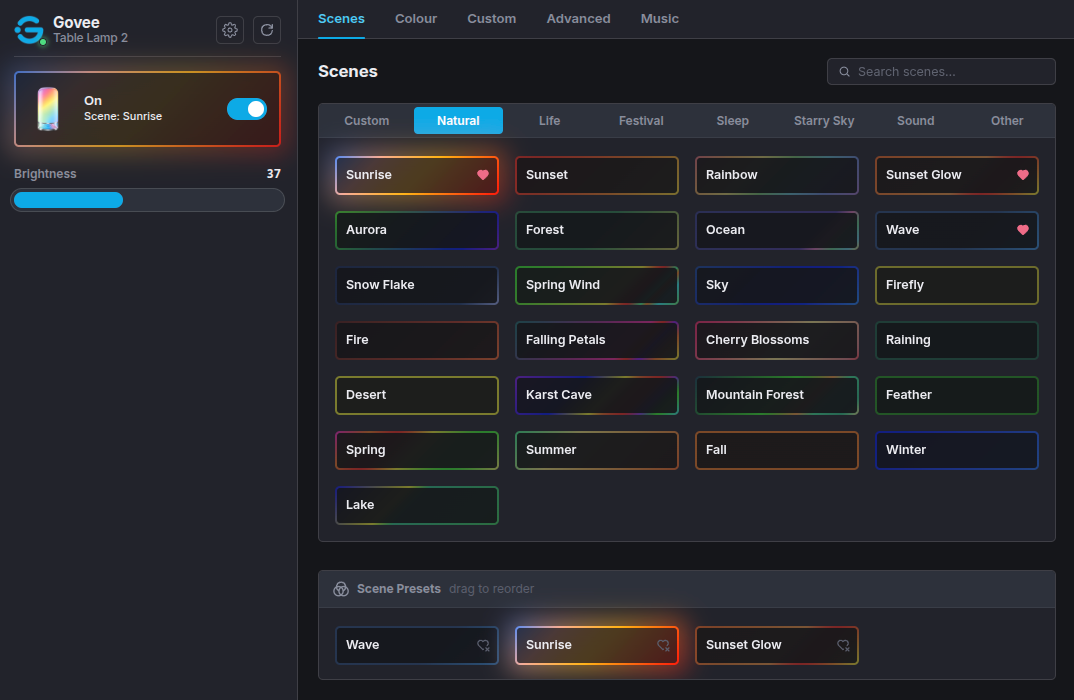

Scene browser showing Natural scenes including Sunrise, Aurora, Forest and more, with scene presets at the bottom — Scene browser: browse and favourite built-in scenes across categories

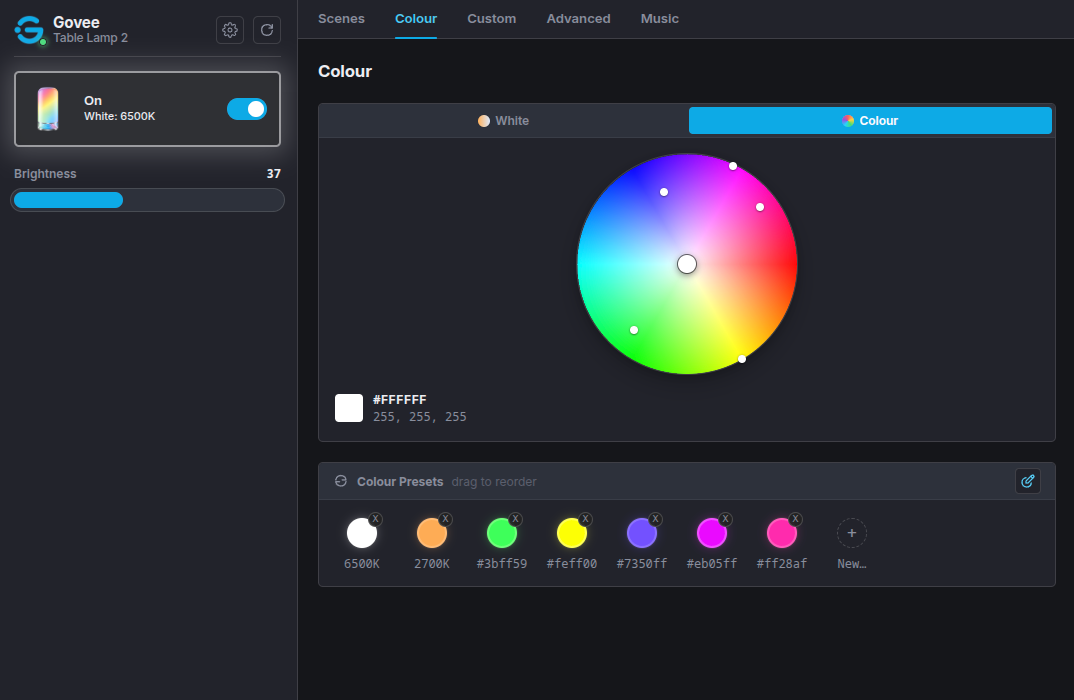

Colour tab showing a colour wheel with preset swatches and brightness slider — Colour picker with saved colour and white temperature presets

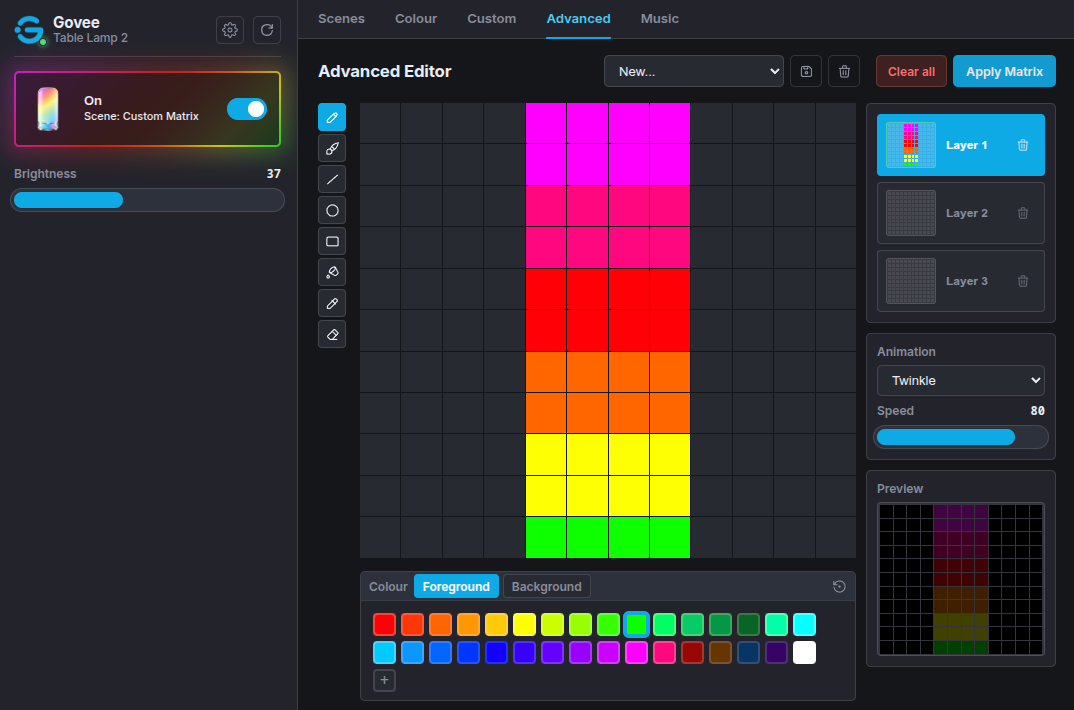

Advanced matrix editor with a rainbow gradient column, layer panel, animation type selector and live preview — Advanced editor: multi-layer animated matrix scene editor

Requirements

Chrome, Edge, or Opera (Web Bluetooth support required)
HTTPS or localhost
Govee Smart Table Lamp 2 (H6022)
